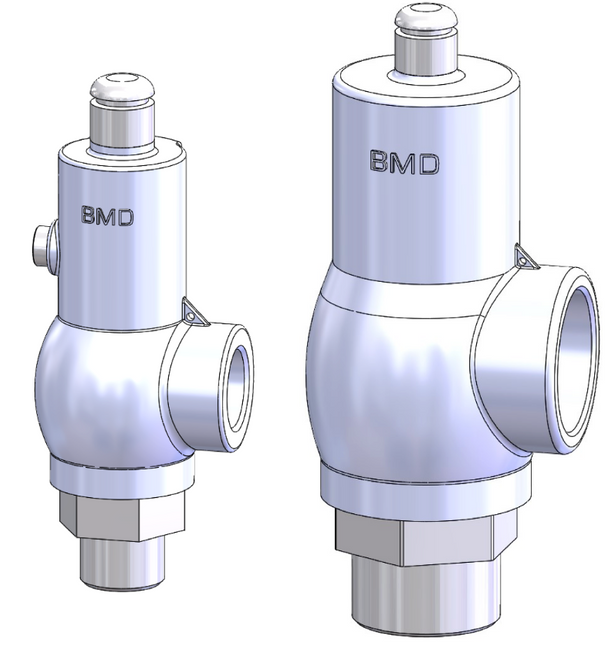

The RV10 safety relief valve is well-suited for overpressure protection of production equipment, including compressors, scrubbers, separators, pipelines or anywhere overpressure protection may be required.
The RV10 design incorporates a non-rising stem to give the disk full guidance while opening and closing. The non-rising stem coupled with the valve’s soft-seat design ensures long lasting set pressure repeatability and bubble-tight shutoff. The shorter stem also makes the valve more compact, making it ideal for requirements where space may be an issue.
The RV10 is ASME certified for gas service and is available in a NPT connection. The RV10 series covers the 125 psi, 250 psi & 1440 psi pressure ratings with orifice size of E. Orifice size exceeds API minimum area for increased flow rates.
The RV10 is manufactured in accordance with the ASME Boiler and Pressure Vessel Code, capacity tested and certified by the National Board, and meet the requirements of Sec on VIII, Division 1 of the ASME Code.
- 1" NPT Threaded
- 125 psi, 250 psi & 1440 psi Pressure Range
- Temperature Range: -50°F to 400°F (-45°C to 204°C)
- Seat Tightness: Meet or Exceeds API 527
